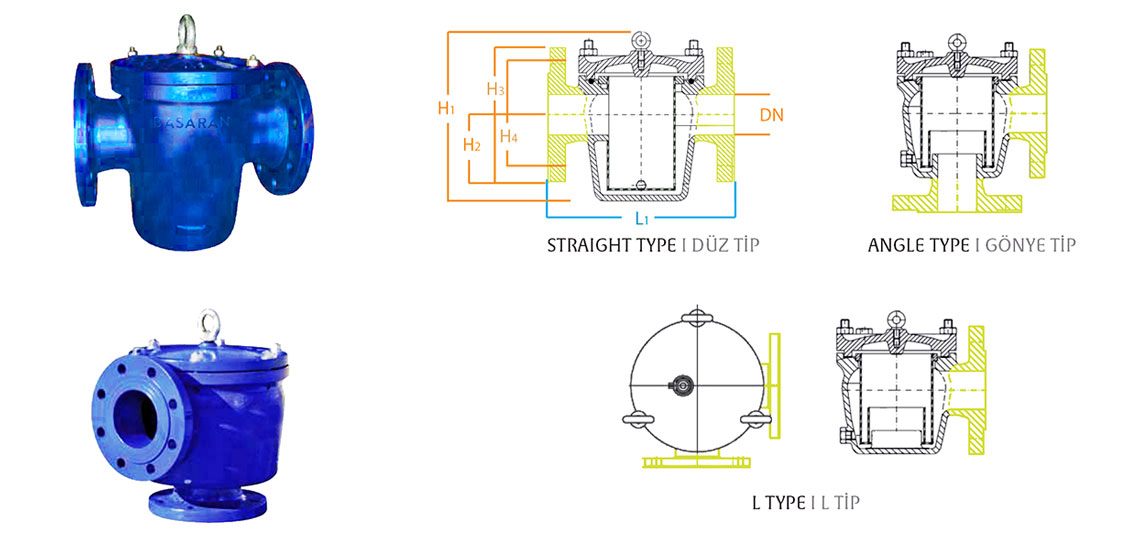

Our Marine type Mud Box specially designed for Ballast, Cargo, and Fuel Venting Systems. We are manufacturing three types of Mud Box, straight type mud box, angle type mud box, and L type mud box
Features | Options
- -10 C to 150 C
- Body : GG25 / GGG40.3 / GSC25 / Bronze RG5 – RG7 – RG 10,CuSn 10 / SS304, SS316, Duplex 1.4470
- Screen : AISI 304L / AISI 316Ti / CuNi10Fe
- Bonnet : Body : GG25 / GGG40.3 / GSC25 / Bronze RG5 – RG7 – RG 10,CuSn 10 / SS304, SS316, Duplex 1.4470
- Ring Screw: Galvanized Steel
- Ring Stud: Steel
- Nut: Steel
- Plug: Bronze / AISI 304 / AISI 316
- O – Ring: EPDM / NBR
| 1/min | m /h | H3 (mm) | H4 (mm) | L1 (mm) | H1 (mm) | H2 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| DN 40 | 113 | 6.8 | 150 | 110 | 200 | 205 | 95 | 15 |
| DN 50 | 177 | 10.6 | 165 | 125 | 230 | 225 | 106 | 21 |
| DN 65 | 298 | 17.9 | 185 | 125 | 290 | 260 | 134 | 25 |
| DN 80 | 495 | 29.7 | 200 | 160 | 310 | 310 | 156 | 36 |
| DN 100 | 708 | 42.4 | 220 | 180 | 350 | 345 | 185 | 51 |
| DN 125 | 1100 | 66.2 | 250 | 210 | 400 | 395 | 225 | 69 |
| DN 150 | 1590 | 95.4 | 285 | 240 | 480 | 465 | 265 | 94 |
| DN 175 | 2360 | 142 | 315 | 270 | 550 | 500 | 296 | 120 |
| DN 200 | 2830 | 169.6 | 340 | 295 | 600 | 565 | 335 | 138 |
| DN 250 | 4420 | 235.2 | 395 | 350 | 600 | 610 | 345 | 200 |
| DN 300 | 6365 | 382 | 445 | 400 | 700 | 675 | 390 | 278 |
| DN 350 | 8660 | 520 | 505 | 460 | 800 | 790 | 425 | 330 |
| DN 400 | 12350 | 740 | 565 | 515 | 740 | 900 | 470 | 458 |
