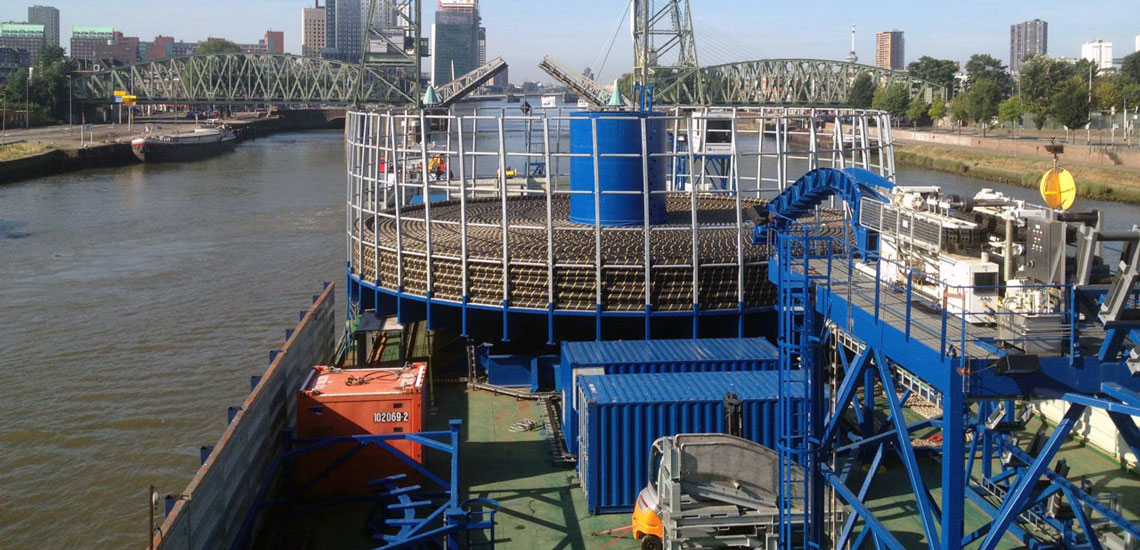

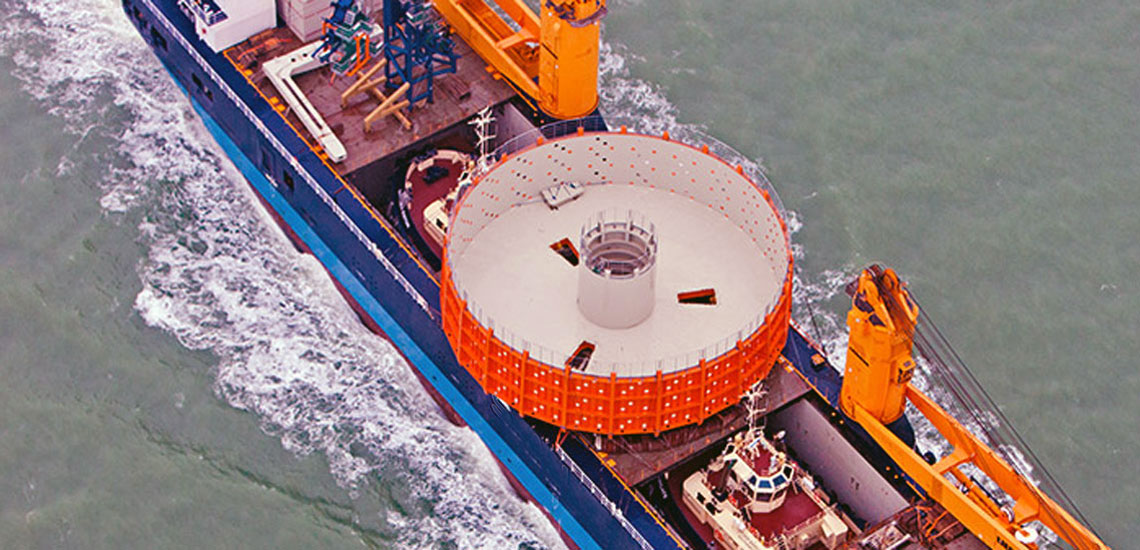

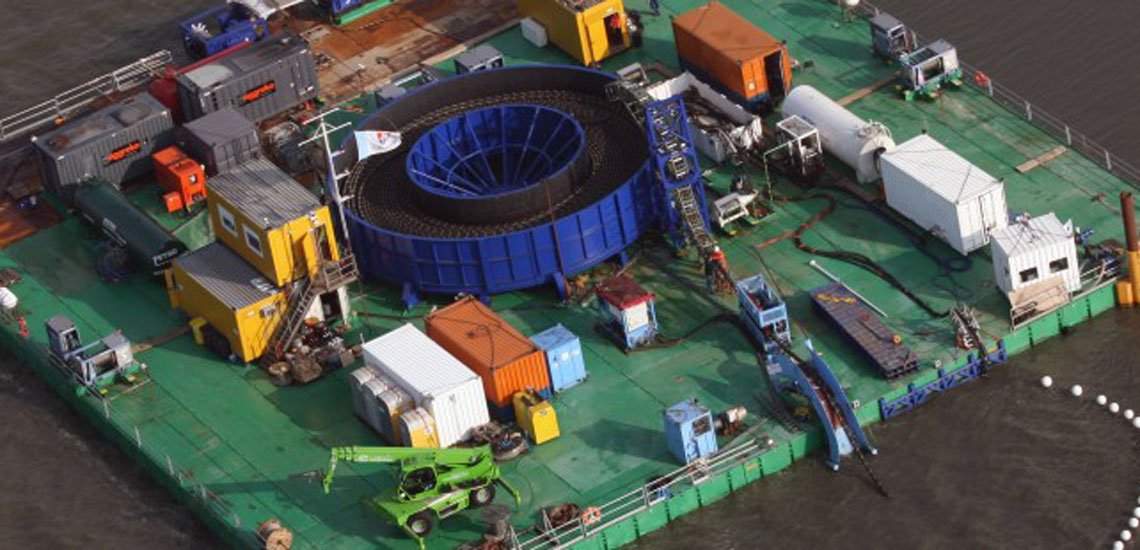

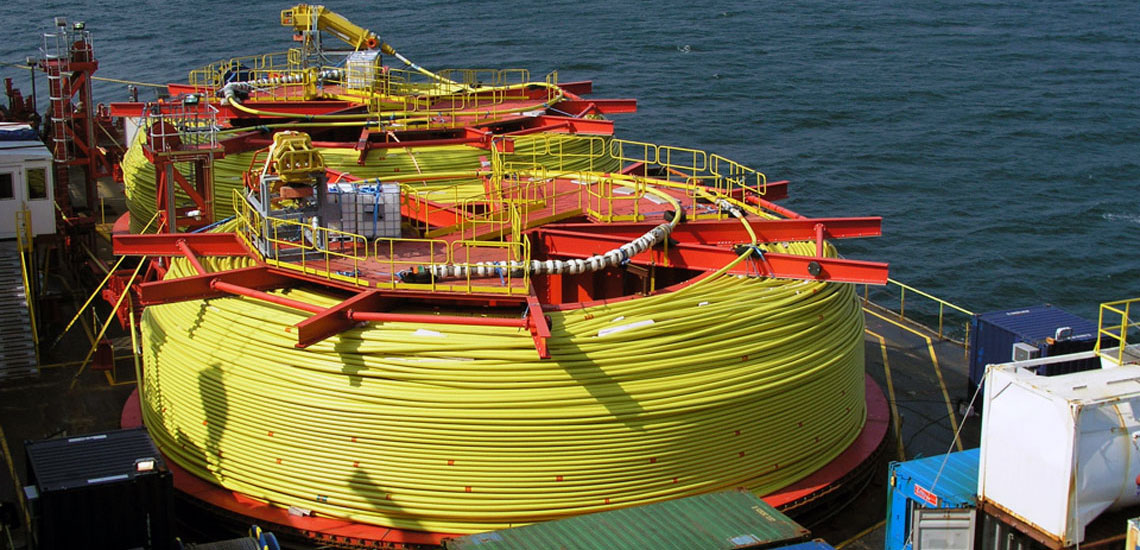

Basaran, Offshore Turntable designed for the storage of carousels are available as basket types or top flange types (reels) and are used to store flexible pipe, fiber optics, tube or hose umbilical, and power cable. The carousel system can arrange according to the customer’s request and also utilized any vessels which have A load and stability capacity.

Carousel System components consist of the following;

  • Loading arm assembly
  • Hinge
  • Roller Guide Tower
  • Roller Table
  • Spooling Towers
  • Tensioners
  • Winches
  • Bottom frame assembly
  • Levelwind Assembly
  • Over drums/ Product separators
  • Compensation Units
  • Hydraulic Power Unit
  • Designed for land and marine applications
  • PLC control system
  • Adjustable diameter for inner hub and outer wall
  • Optional partition zones
  • Integrated grillage for sheerleg lifting or SPMT operations
  • Widths and speed can be designed for customer requirements
  • Convertable to basket carousel
  • Load and unload with ease
  • Modular design, interchangeable and 40 ft containerized system
  • Can be designed for single-point lift fully assembled (excludes product load)
  • Easy access to support rollers
  • Fully synchronized emergency stop capability
  • Resilient mounting technique supports the even distribution of the load
  • Manual, semiautomatic and automatic control
Outside DiameterLoad CapacityHeight
Carousel 10008m1000 mTup to 8 m
Carousel 150016 m1500 mTup to 8 m
Carousel 200018 m2000 mTup to 8 m
Carousel 700028m7000 mTup to 8 m
Carousel 800032m8000 mTup to 8 m
