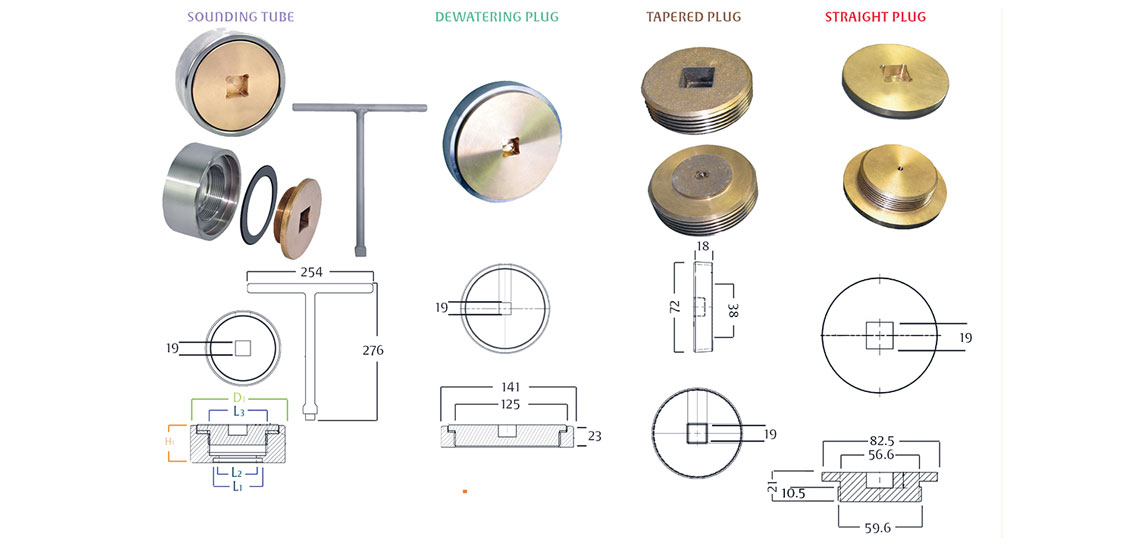

We are manufacturing four types of Sounding Tube & Sounding Plug, dewatering plug, tapered plug, and straight plug
Features | Options
- Body: Stainless Steel
- Gasket: Neoprene Rubber
- Plug: Cast Bronze
- Operating Wrench: Zinc Plated Steel
| H1 (mm) | L1 (mm) | L2 (mm) | L3 | D1 (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|
| ST 1 | 38 | 50 | 1 1/2’’ | ANSI 2’’ NPSM | 96 | 1.5 |
| ST 2 | 38 | 62 | 2‘’ | ANSI 2’’ NPSM | 96 | 1.5 |
| ST 3 | 38 | 75 | 2 1/2‘’ | ANSI 3‘’ NPSM | 120 | 2.7 |
| ST 4 | 38 | 90 | 3’’ | ANSI 3‘’ NPSM | 120 | 2.7 |
