Our marine or industrial use pipe coupling designed for ballast pipeline, fire pipeline, the electrical pipeline to connect steel pipes, cast iron pipes, PVC pipes, ABS pipes transporting water, petroleum and gas industry, marine and also Pipe Coupling is suitable for repair projects. The nitrile rubber gaskets supplied are approved for potable water applications.
Features | Specifications
- High-pressure capability up to PN 35
- Corrosion Protection
- Chemical Resistant
- Easy Assembly
- Material: Safero – Pik Aluminium or Steel
- Bolt: Steel to BS EN ISO 898-1 property class 4.8
- Nuts: Steel to BS EN 20898-2 property class 8
- Coating: Galvanised or epoxy
- Gasket: Nitrile
- Size Range: DN 80 – DN 2000
- Temperature Range: -10˚C to 60˚C

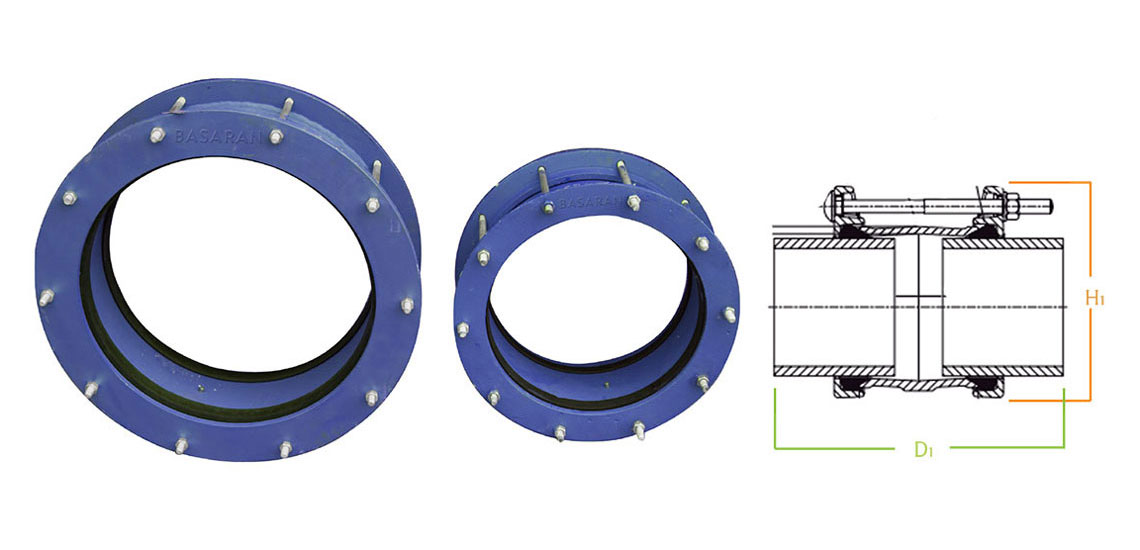

| PIPE DN (mm) | BAR | H1 (mm) | DN x D1 | Weight (kg) | |
|---|---|---|---|---|---|
| Coupling 50 | 50 | 45 | 136 | 2 - M12 x 180 | 2 |
| Coupling 65 | 65 | 45 | 148 | 2 - M12 x 180 | 3 |
| Coupling 80 | 80 | 45 | 164 | 2 - M12 x 180 | 3 |
| Coupling 100 | 100 | 45 | 177 | 4 - M12 x 180 | 4 |
| Coupling 125 | 125 | 45 | 205 | 4 - M12 x 180 | 4 |
| Coupling 150 | 150 | 45 | 228 | 4 - M12 x 180 | 5 |
| Coupling 200 | 200 | 30 | 292 | 4 - M12 x 180 | 8 |
| Coupling 250 | 250 | 35 | 372 | 6 - M12 x 180 | 9 |
| Coupling 300 | 300 | 30 | 424 | 6 - M12 x 180 | 11 |
| Coupling 350 | 350 | 25 | 446 | 6 - M12 x 235 | 13 |
| Coupling 400 | 400 | 27 | 500 | 8 - M12 x 235 | 22 |
| Coupling 4500 | 450 | 24 | 548 | 8 - M12 x 235 | 25 |
| Coupling 500 | 500 | 27 | 598 | 10 - M12 x 235 | 28 |
| Coupling 550 | 550 | 25 | 649 | 10 - M12 x 235 | 30 |
| Coupling 600 | 600 | 23 | 700 | 10 - M12 x 235 | 33 |
| Coupling 6500 | 650 | 24 | 751 | 12 - M12 x 235 | 36 |
| Coupling 700 | 700 | 23 | 802 | 12 - M12 x 235 | 38 |
